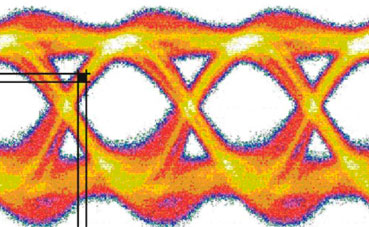

40 Gb/s Eye Diagram Monitor (EDM)
- ● Fast communication over long distances poses challenges for signal detection & recovery
- ● Chromatic dispersion of the LASER pulse or mode dispersion destroys the signal after about 1000km in optical fiber
- ● advICo developed the patented Eye Diagram Monitor – a very small & efficient system that monitors the quality of a data signal
- ● Applications include quality monitoring, control of equalizers, & portable instruments
- ● advICo patent in DE/US
- ● 30GHz bandwidth sufficient for 40Gb/s
- ● Operates like a single-chip sampling scope
- ● Very small & low power consumption
- ● Offers detailed information about the signal
- ● Can be used to control dispersion compensation or to monitor quality of wide area networks
